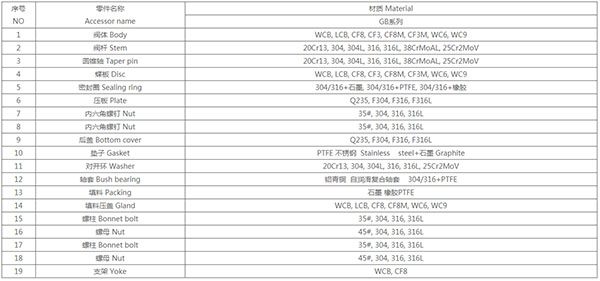

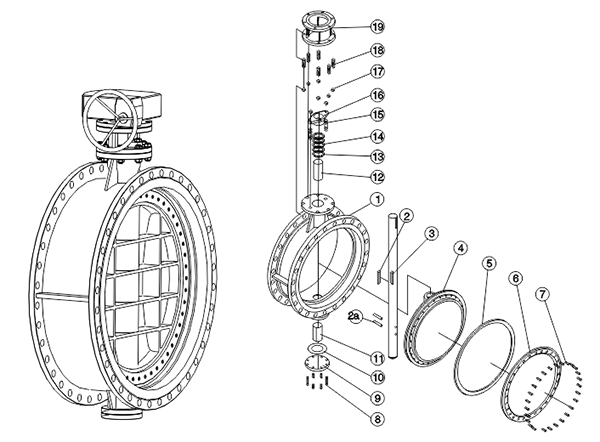

主要零件和材质 Main parts and materials

产品结构特点 Construction features

       本双向蝶阀采取多层次三偏心金属硬密封结构，不仅具有普通多层次三偏心金属硬密封蝶阀的全部优良性能，由于在设计上合理地减小了径向偏心值，在关闭状态下阀杆所受力矩较小，处于静平衡，同时， 蝶板密封圈采用了优质碳素材料与高韧性不锈钢组成多层次结构，不仅柔中有刚能与阀座保持最佳密合，而且具有非常良好的自动补偿功能，特别在较大温差的工况条件下，可以消除由此引起的结构变形对密封性能的影响，又由于在加工和装配过程采用了予应力方法，使阀门在反向受压时产生的相对位移得到充分补偿，因此本蝶阀不论正向或反向受压，均能在全额压差下达到泄漏量为零。

This bi-directional take multi-level triple eccentric metal hard seal structure, not only has ordinary multi-layer all excellent properties of triple eccentric metal hard seal butterfly valve, due to the design reduces the radial eccentricity value reasonably, in closed valve stem torque is small, in static equilibrium, at the same time, the butterfly plate sealing ring with the high quality carbon materials with high toughness of multi-layer stainless steel structure, not only in the soft just can maintain the best closed with the valve seat, and have a very good self-compensation function, especially under the condition of the working condition of large temperature difference, can eliminate the resulting structure deformation influence on sealing performance, and because of adopted to stress during the process of processing and assembling method, makes the valve in the reverse pressure when the relative displacement be compensated fully, either forward or reverse pressure, therefore thisbutterfly valve are under full differential pressure to achieve zero leakage.

产品特征 Spericfications

适用介质：水、气、油品、天然气和酸碱腐蚀性介质

适用温度：-196~350℃

驱动方式：手动、气动、电动、液动等

公称压力：0.6~4.0MPa

公称通径：DN100~4500mm

Applicable media: water, gas, oil, gas and acid and alkali corrosive medium

Applicable temperature: -196~350℃

Driver: manual, pneumatic, electric, hydraulic, etc

Nominal pressure: 0.6~4.0MPa

Nominal size: DN100~4500mm

技术规范 Technical specification

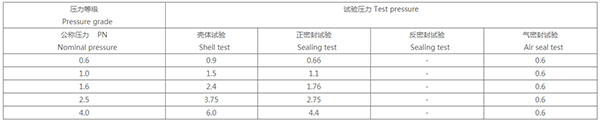

试验压力 Test prssure

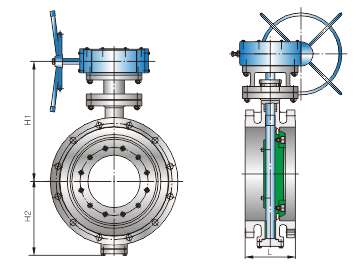

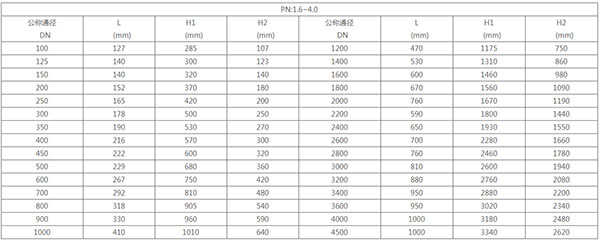

蝶阀结构长度和外接尺寸 Main connection dimensions
